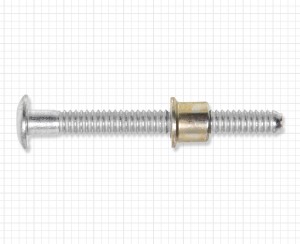

Small Diameter Lockbolts

Small Diameter Lockbolts

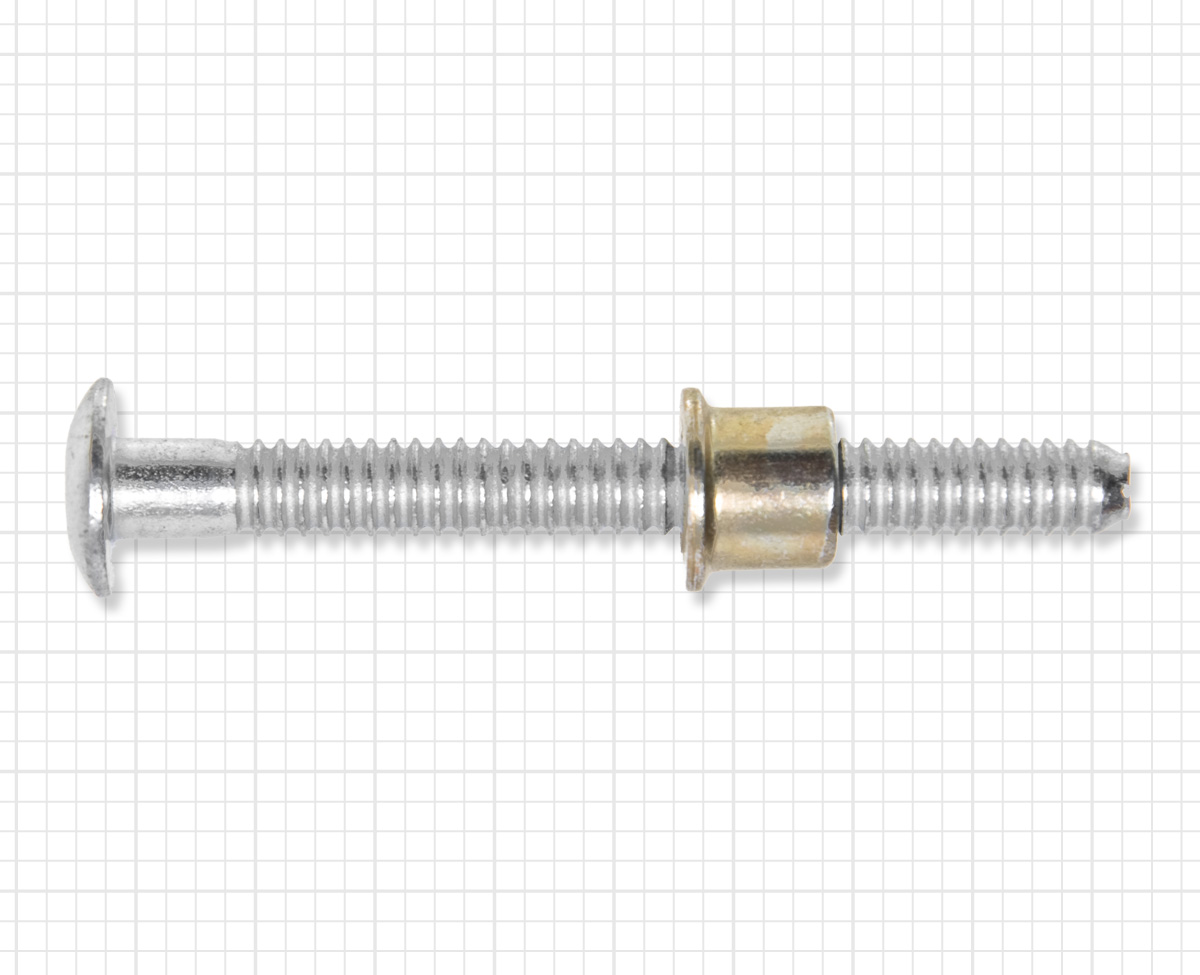

The small diameter Lockbolt pin and collar is a two-piece fastening system. Lockbolts offer a high strength, vibration proof installation and high shear and clamp loads.

Lockbolts are quick and easy to install, tamper proof, and offering a wide range of diameters and lengths make them the ideal choice for engineering applications and general fabrications.

Standard Sizes:

Ø 4.8mm (3/16”)
Ø 6.4mm (1/4”)
Ø 8.0mm (5/16”)
Ø 9.6mm (3/8”)

Standard Head Styles: Brazier head, Truss Head, CSK
Material / Finish: Steel, Aluminium, Stainless Steel
Optional Finish: Industry standard finishes available.
Optional Very High Tensile Strength: 10.9 grade
Optional Head or Styles: Custom made bolts and head styles can be developed for customers with specific applications. Typically used where the outer head of the lock bolts can perform additional functions designed into the manufacture.

Once the collar has been swaged onto the Lockbolt a permanent vibration proof joint is achieved.

The pre-load values remain consistent on every installation.

Our Lockbolt fasteners have been extensively tested and conform to the very same specification as industry standards.

It is important to note that both our fasteners and tooling are fully compatible and above all interchangeable with industry standard systems.

The design and construction of the Lockbolt fastening system ensures the user of a high pull together of  joints and permanent clamp force with consistent pre-load on every fastener.

The high tensile and shear strength of the installed Lockbolt provides a joint with very high resistance to vibratory loosening. This ensures that all fasteners are installed with the same results under all conditions.

Visual inspection of the installed fasteners eliminates the need for expensive equipment and time consuming inspection methods.

Lockbolt Installation Drawing

  1. The pin is inserted into the pre-cut hole
  2. The collar is placed over the pin
  3. Tool is covers the pin tail and activated
  4. Tool swages collar and creates clamp
  5. Pin tail breaks and installation is complete

The video below Describes the use of Lockbolt Pin and Collar together with the installation tool clamping two sheets of material together.

3/16″ – Pneudraulic Tool GB713 / Hydraulic Tool GB2480 – Nose assembly LB06-722-20
1/4″ – Pneudraulic Tool GB713 / Hydraulic Tool GB2480 – Nose assembly LB08-722-20
5/16″ – Pneudraulic Tool GB745 / Hydraulic Tool GB2581 – Nose assembly LB10-745C-26
3/8″ – Pneudraulic Tool GB745 / Hydraulic Tool GB2581 – Nose assembly LB12-756-26

NEW

Stainless Steel Capped Lockbolts

For samples please get in touch

Stainless Steel Capped Lockbolts

Lockbolt Data Sheets - Pins

4.8mm (3/16") Diameter Lockbolts ERSB 6 Series

GRIP RANGE: 1.6mm - 33.35mm (0.06" - 1.31")

6.4mm (1/4") Diameter Lockbolts ERSB 8 Series

GRIP RANGE: 1.6mm - 33.35mm (0.06" - 1.31")

8mm (5/16") Diameter Lockbolts ERSB 10 Series

GRIP RANGE: 3.18mm - 34.93mm (0.125" - 1.375")

9.6mm (3/8") Diameter Lockbolts ERSB 12 Series

GRIP RANGE: 3.18mm - 34.93mm (0.125" - 1.375")

Lockbolt Data Sheets - Collars

Lockbolt Data Sheets - Inspection Data

Part Number Identification - Small Diameter Lockbolts

PREFIX
ER – Lockbolt ERS pin and collar

MATERIAL
S – Steel 8.8
SS – Stainless Steel
A – Aluminium

PIN HEAD STYLE
B – Brazier head
T – Truss Head
CSK – Countersunk

COLLAR STYLE
C – Standard
CF – Flanged
L – Low Profile

DIAMETER REFERENCE
06 – 4.8mm – 3/16″
08 – 6.4mm – 1/4″
10 – 8.0mm – 5/16″
12 – 9.6mm – 3/8″

GRIP NUMBER
Nominal Grip Range – see grip range sheet.

COLLAR REFERENCE
00 used for all collars

OPTIONAL FINISH
G – 8-10 micron zinc & clear passivate
T – 20 micron zinc / clear
